PRODUCTS


FUME SCRUBBERS, BLOWERS & DUCTS

Poly Pac Packed Tower Scrubbers are highly effective for the prevention and removal of inorganic gases, odors, and fumes, especially in exhaust air containing hydrochloric acid and nitric acid fumes. Poly Mist Scrubbers are ideal for eliminating acid mist and fumes from the exhaust air of process baths, particularly those containing chromic acid and sulfuric acid. These scrubbers can be used independently or as "prescrubbers" to enhance the performance of packed scrubbers. Vertical Flow Scrubbers are well-suited for chemical processes, metal finishing, semiconductor manufacturing, and various other industrial operations that generate fumes and gases. The best performance is achieved by systems that provide optimal gas/liquid mixing with low pressure drop.

Our standard construction materials include polypropylene, fiberglass, and PVC, with optional materials such as high alloy metals like stainless steel and Hastelloy available.


ACID & RINSE WATER RECYCLING SYSTEM

Acids play a crucial role in various production processes, including etching, pickling, polishing, deburring, metal refinement, passivation, activation, ore digestion, leaching, nitration, sulfonation, neutralization, catalysis, and ion exchange, among others. Common types of acids include sulfuric, phosphoric, nitric, and hydrofluoric acids, as well as their mixtures. During production, these acids help eliminate impurities such as metal ions, complexes, organics, and solid particles.

Polyfill Microns provides systems designed to remove these metals from solutions, facilitating continuous recycling. For critical applications, we conduct laboratory or pilot studies prior to implementing the system. Our offerings include:

1. Chromic Acid rinse & Bath Recycling
2. Chrome passivation bath recycling
3. Nickel sulfate rinse & bath recycling
4. Hydrochloric and sulfuric acid pickling bath recycling
5. Anodizing bath recycling
6. Degreasing bath recycling
7. Yarn jet wash water recycling
8. Garage/Car wash water recycling



We utilize a variety of treatment methods, including:
1. Ion Exchange columns
2. Membrane Technology (RO/NF/Diffusion Dialysis)
3. Chemical Treatment
4. Physical Separation


DM PLANT

Deionized water, often referred to as DM, is essentially water that has had most of its mineral and dissolved ion content removed, resulting in pure water. Its purity is assessed based on its value; pure water does not conduct electricity, as it is the ions that facilitate electrical conduction. The deization process involves an ion-exchange method where water passes through resin, exchanging hydroxide ions (OH-) for negative ions. The highest quality deionized water is produced using mixed-bedionization (MBDI), which combines both cation and anion exchange resins, while separate columns for anions and cations are less common due to the effectiveness and cost-efficiency of reverse osmosis. The quality of deionized water is measured by its conductivity or resistivity, as shown in the chart below, where resistivity is indicated above the line in ohms or megohms, and conductivity is below the line in microsiemens.

Deionized (DM) high purity water is crucial for numerous applications, including:

1. Medical Offices
2. Laboratories
3. Pharmaceutical Companies
4. Cosmetic Companies
5. Large Aquariums and Fish Tanks
6. Electronics Manufacturing Plants
7. Food Processing Plants
8. Planting and Anodizing
9. Final Rinse in Car Washes

Type III Purified Water is classified as having a resistivity of 1 megohm to 0.02 ohms or 1 to 50 microsiemens. Type II Pure Water ranges from 1 to 10 megohms or 1.0 to 0.1 microsiemens. Type I Ultra-Pure Water is defined as having a resistivity of 10 to 18.2 megohms or 0.01 to 0.0555 microsiemens.

Capacity: 500 LPH to 25,000 LPH
MOC: FRP / MSRL
Type: Manual / Semi-Automatic / Fully Automatic

Simran (6).jpeg

MEMBRANE FILTRATION SYSTEM / RO SYSTEM

POLYFILL's RO/NF/UF membrane systems provide comprehensive filtration solutions. Our nanofiltration effectively removes  dissolved organics, and softening agents. Reverse osmosis is utilized for the removal of total dissolved solids inorganic ions, such as nitrate and radium, while ultrafiltration and micron filtration serve as filtration for RO systems, eliminating suspended solids and oils.

We pride ourselves on offering the finest custom-manured water treatment systems in the industry, ensuring exceptional service and support from initial design through construction, commissioning, and throughout the project's life.

For treating particularly challenging waters, a successful approach may involve a combination of conventional and membrane treatment equipment within a single system. Our systems have a capacity ranging from 500 LPH to 10,000 LPH.

WhatsApp Image 2023-04-17 at 12.25.52.jpeg

SEWAGE TREATMENT SYSTEM

Polyfill Microns integrates a variety of advanced technological features:

- Aerobic Treatment, Anaerobic Treatment, and Electrocoagulation.
- Primary and final settlement Lamella plate settlement technology.
- Plug Flow design.
Versatile GRP Steel Reinforced Tank that can be installed above or below ground without a concrete.
- Modular design allowing for parallel expansion of units.
- Security provided by lock-down covers for safety.
- Flex to operate units in parallel or series for various effluent parameters.
- Portable design for easy relocation between sites.

The system arrives fully assembled, requiring only placement on a concrete slab and connection of inlet/outlet pipes and electricity— a “plug and play” solution. It combines primary and final settlement with sewage treatment, eliminating the need for costly and time-intensive civil works like separate settlements, screens, or septic tanks.

Key Features of our STP:

- whole life cost (Lifetime value).
- Minimal civil works (potential for significant savings).
- Compact footprint (most space-efficient all-in-one sewage treatment system available).
- Lowest maintenance requirements.
- Lowest power consumption.
- Modular design (asily movable and expandable).
- Proven.
- Comprehensive technical support.

Capacity: 5 KLD to100 KLD
Type: Portable, Skid Mounted
Process: Primary, Secondary, and Tertiary Treatment.


PNEUMATIC PIPING SYSTEM

We specialize in the design, supply, and installation of a variety of efficient piping systems. Our piping systems are utilized across numerous industries due their enhanced features. We leverage the latest technology and advanced machinery to manufacture pipes that are highly valued and in high demand by clients throughout India.

Our offerings include:

- Pneumatic piping in Aluminium / PPR / PE-Al composite
- Stainless steel piping for dairy, pharmaceutical, and food industries
- PP / HDPE piping for corrosive liquid applications

Our pneumatic systems are recognized for:

- Sturdy construction
- Long lifespan
- Corrosion resistance
- High tolerance to a wide range of temperatures and pressures
- Easy installation
- Low maintenance
- Competitive pricing

Applications include:

1. Compressed air piping
2. Automotive workshops
3. Pneumatically operated machinery and equipment

PNEUMATIC DIAPHRAGM VALVES

**Diaphragm Valve for Liquids Gases:**

- **Material of Construction (MOC):** Reinforced PA, PP, or Noryl
- **Temperature Range:** 4 - 50°C
- **Design Pressure:** 0.1 to 1.0 MPa

**Special Features:**

- Chemical-resistant
- Excellent surface finish
- Cost-effective, reducing lifetime maintenance
- Large seat opening and high lift disc for improved flow rates with lower pressure drop
- Separate diaphragm chambers safeguard the diaphragm from the flow stream, enabling in-line servicing
- Available in 3/4 inch to 3-inch threaded (N.P.T or B.S.P.) and 3-inch to 6-inch flanged drilled per ASA16.1 Class 25, BSP4504- Can be operated using either air or water as a control fluid
- Compatible with a wide range of line fluids, including air and water applications

**Widely Used In:**

- Demineralization plants
- Softeners
- Water treatment facilities

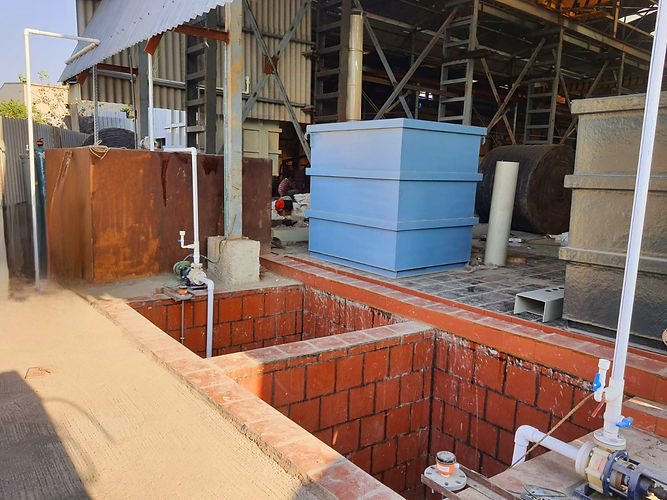

WhatsApp Image 2023-04-06 at 16.03.37.jpeg

EFFLUENT TREATMENT PLANT

Polyfill Microns offers tailor- made effluent treatment systems to treat and recycle industrial process waste.

Primary treatment:
Chemical dosing and handling, oil and grease removal and clarifiers

Secondary Treatment:
Activated Sludge process, fixed media growth system, fluidized bed media system.

Recycling / Zero discharge:
Ultra-filtration, Reverse Osmosis, MEE, ATFE etc.

Features of Our Effluent Treatment Plant:

  • High Performance

  • Low Maintenance

  • Long Operational Life

  • Safe and Reliable

  • Energy Saving

  • Corrosion resistant

  • Robust construction



Industries We Serve

  • Metal Finishing Industries

  • Pharmaceuticals

  • Chemical Industries

  • Textile / Dye Industries

  • Dairy Industries


INDUSTRIAL CHEMICALS

We offer a wide range of industrial chemicals supplied in India.

Polyfill Microns Pvt. Ltd. is an authorized distributor of PRO-pHx acid life extender, a proprietary and environmentally friendly product from Wagner Environmental Technologies LLC USA. PRO-pHx reduces acid disposal and treatment costs for industries such as Galvanizing, Anodizing, Electroplating, Wire and Rod Plants, Steel Mills, and Circuit Board Printing, as well as all sectors involved in activation, passivation, stripping, pickling, and cleaning. This acid life extender purifies acids, removes metals and organics, and eliminates the need for acid disposal.

Applications:

1. Electroplating Industries
2. Anodizing Industries
3. Galvanizing Industries
4. Wire Pickling Industries
5. Sheet Pickling Industries

Our range of supplied chemicals includes:

- PRO-pHx Acid Life Extender
- Calcium Hydroxide Powder / Hydrated Lime Powder
- Poly Electrolytes
- Ferric Alum
- Fume Suppressant
- Acid Purification Chemicals
- Other Metal Removal Chemicals from Acid Bath

Products: Products
